Model: SK198D-B-HD
👉 Product Q&A's

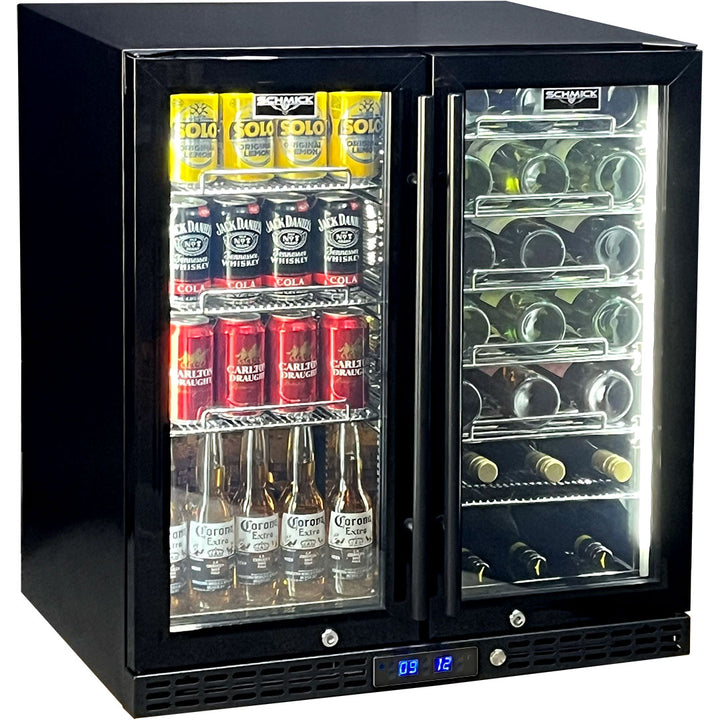

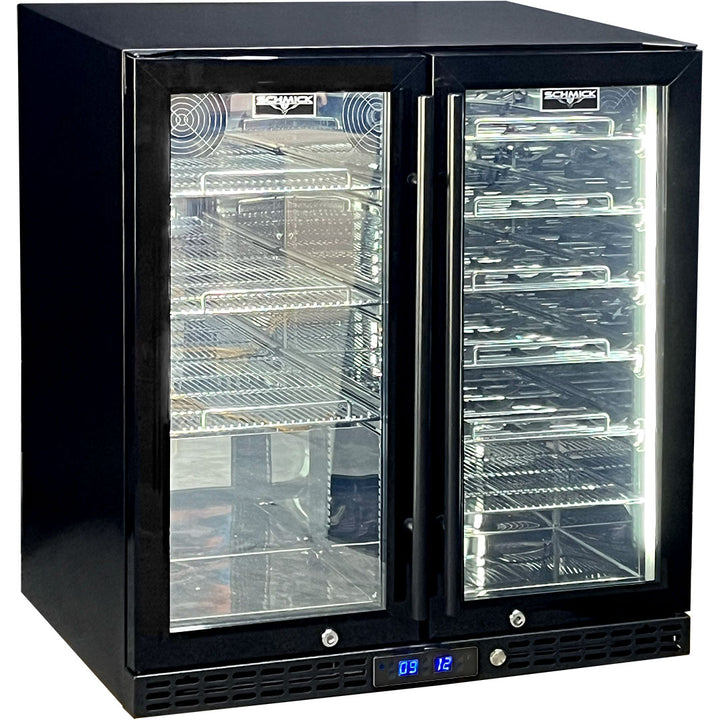

Schmick Under Bench Beer And Wine Dual Zone Bar Fridge - Model SK198D-B-HD In Stock Pre Order Out of Stock

A brilliant little reliable 2 zone beer and wine bar fridge with electronic control over 2 x separate zones. The shelving system is fully interchangeable and adjustable making any wine or beer drink option available. A great addition to your enclosed entertaining areas.

Cans: 88 Wine Bottles: 28 Litres: 215 Size: 750 x 570 x 840 WxDxHmm

$1,697.00 Inc GST

Payment Options

apple paygoogle paymasterpaypalshopify payafterpayhummzip-money payright
From$1,697.00Inc GST
Add to Cart

Overview

Product Snapshot

Twin zone beer and wine fridge designed for indoor quiet applications,

Multi Purpose Slide out interchangeable shelving and nice soft Blue or White LED lighting make it a great little addition to your home entertaining area.

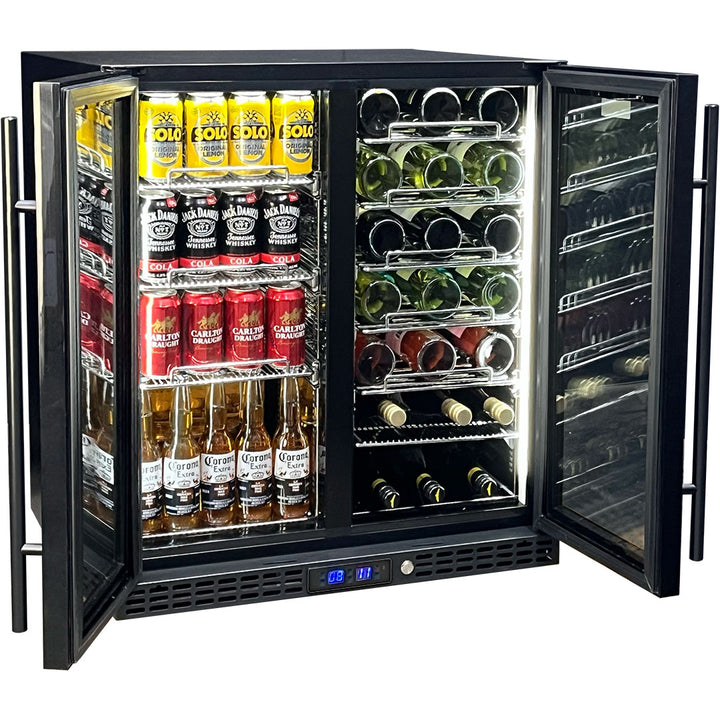

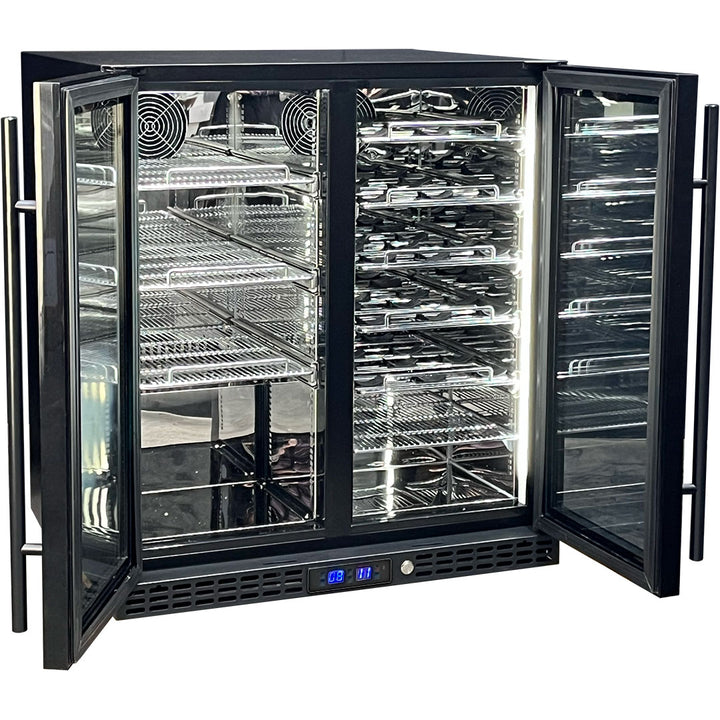

Slide Out Shelving can interchange from beer and wine, and plenty of height adjustments makes it the best unit on market for options.


Unlike traditional dual zone units, that must have a large temperature variance between the 2 zones, we've designed these to have 2 completely separate cooling systems, which means you can set both left and right sides to pretty much any temp that you like (We've installed a heater on the right hand side to help maintain warmer temps for wines in the cooler months)

Main Features

TASTY INFO 1: Build in under counters is no problems, units vent at front through grill.
TASTY INFO 2: 2 zones means you can mix and match your drinks selection
TASTY INFO 3: Quiet fans fitted to suit an indoor entertaining area
TASTY INFO 4: Tempered LOW E glass helps prevent condensation
ENERGY SAVING FEATURES:

R600 100% ozone safe gas, LOW E glass, LED lighting, Cyclopentane foaming, 12Volt Fans
ADJUSTABLE FEET:

Yes (4 adjustable feet)
LOCKABLE:

YES
GLASS DOOR INFORMATION:

Dual glazed tempered LOW E glass with switchable heated glass to stop condensation in high humidity. *Note: Heated glass adds to running costs.

Learn more about glass doors and condensation
DOOR HINGED:

1 x Left & 1 x Right
SHELVING:

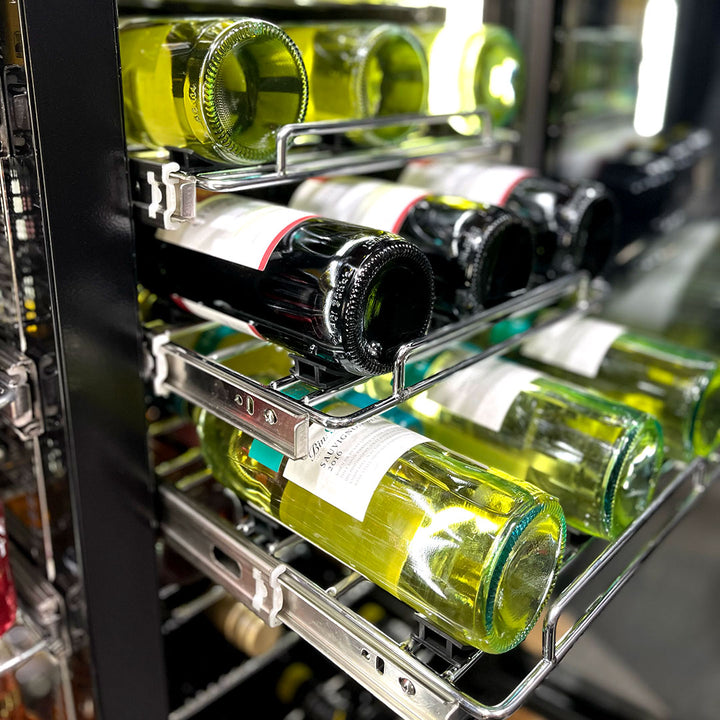

Wine: 5 x Slide Out Shelves 280mmW x 415mmD and 2 x Mini 315mmW x 270mmD / Beer 3 x Chromed Flat Slide Out Shelves 280mmW x 415mmD and 1 Mini 315mmW x 270mmD
BODY COLOR:

Black
GRILL FINISH:

Black
INTERIOR FINISH:

Molded black
MODEL CODE: SK198D-B-HD

Technical

COOLING:

2 zones independently controlled, either side can be 1-18oC
LOCATION & SUITABILITY: Indoor
ENERGY STAR RATING: 9
POWER CONSUMPTION:

1.91 kW/24hrs
RUNNING COST:

Approximately $178.75 per year (Based on 25.64 cents per kilowatt)

Learn more about energy consumption

NOISE LEVEL:

43

dB

Learn more about noise levels

BRAND PARTS USED:

Meanwell Transformer From Taiwan, High Quality Chinese Compressor, Selected Quiet Fans
WEIGHT:

78 kg

Peace of Mind

BRAND INFORMATION:

Schmick is our own flagship brand that is reserved for the best units we sell that encompass both excellent design and performance.
APPROVALS:

EMC (C-Tick), SAA Electrical

Capacity

WHAT FITS IN:
Corona Bottles: 72 Bottles
Standard 375ml Cans: 88
Standard Wine Bottles: 28
Litres: 215
Shelvings:

Wine: 5 x Slide Out Shelves 280mmW x 415mmD and 2 x Mini 315mmW x 270mmD / Beer 3 x Chromed Flat Slide Out Shelves 280mmW x 415mmD and 1 Mini 315mmW x 270mmD

Dimensions

Exterior (WxDxH): 750 x 570 x 840 mm
INTERNAL (WxDxH): 600 x 420 x 605 mm
OTHER SIZE INFORMATION:

Door Size: 365mmW x 755mmH / Grill Height From Floor: 70mm

Ventilation Requirements (Minimums)

Top: 10 mm
Each Side: 10 mm
Rear: 50 mm

Useful Information

Brochure
Stainless Steel Care Guide
Fridges & Sunlight

Looking for more files? Login to your account to see your available options.

A built in fridge adds a touch of class, but it needs to have the correct ventilation!

If you are building this fridge in, your cavity will need to be at least 770.0mm wide, 620.0mm deep and 850.0mm high.

Cavity Dimensions Minimum Ventilation
Width: 770.0mm Each Side: 10mm
Depth: 620.0mm Rear: 50mm
Height: 850.0mm Top: 10mm

      Cavity Width: 770.0mm
      Cavity Depth: 620.0mm
      Cavity Height: 850.0mm

      Ventilation Each Side: 10mm
      Ventilation Rear: 50mm
      Ventilation Top: 10mm

2 Years Parts & Labour Included

You can extend the the included warranty to a total of 3 years parts and lab.

Included

2 Years Parts & Labour

We come to you. This is not a back to base warranty and not a parts only warranty. We cover all parts and labour costs involved with fixing your fridge.

Comprehensive

3 Years Parts & Labour

This is our top level cover and covers you for 3 years on all benefits provided by our included warranty.
