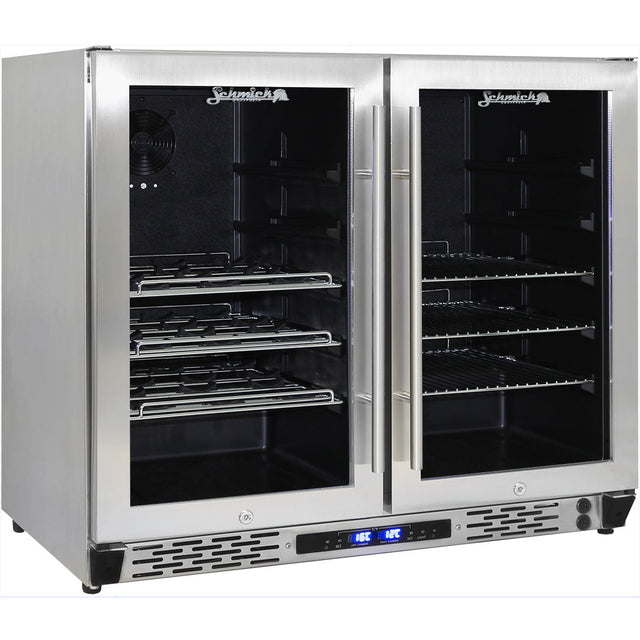

  • Model: JC190GG

The Fridge Has Stopped Cooling Or Is Not Cooling Enough?

1. Check to ensure you have the correct ventilation, as per below.
Each Side: 10mm
Top: 10mm
Rear: 50mm

2. Make sure the front bottom grille located under the fridge's doors is completely exposed and not blocked/covered.

3. This model is not IP rated and must be protected from the elements.
Additionally, the glass door variant must not have any direct sunlight contact.

4. This fridge is only rated to handle ambient temperatures up to 32°C, it cannot be located where it will exceed this rating.

5. Check to ensure the evaporator fan is working correctly, located inside the fridge on the inner rear wall - there will be one in each zone.

6. Check to see if there is any ice build-up inside the fridge on the rear wall.
If there is ice, turn the fridge off and allow it to defrost overnight - it may be worth putting some towels down to catch any excess water.

7. Make sure the condenser fan is working correctly, this should operate simultaneously with the compressor. You should feel a breeze through the front grille, under the fridge's doors.

8. Check the temperature that you have the fridge set on.  If the fridge is set on 2°C, it will cycle between 2°C - 6°C and keep your drinks around 4°C.


I Have Condensation Forming On My Glass Doors?

1. Ensure the heated door switches are turned on, located at the right side of the grille, under the fridge's doors.

Does this sound like your issue?

If so, enter your contact details and short message and we will get in touch with you.
